Tompkins Financial Corporation HQ Construction Update, 8/2017

25 08 2017

At the new Tompkins Financial Headquarters under construction at 119 West Seneca Street downtown, it looks like most of the structural steel has been erected, and gypsum sheathing has been installed over the skeleton. The top (seventh) floor is set back slightly from the lower levels, and will use light colored aluminum metal panels on all sides except the front, which will use black brick and stone veneer. With the exception of the rear stairwell, the side and rear walls will be faced with a tan brick veneer on the lower floors.

Brick veneer can be tricky because it’s porous. Water can penetrate the brick and make its way to subsurface coatings, where moisture can do damage over time. As a result, builders have to use a water-resistive barrier (WRB) between the sheathing and the brick. This can be done a few different ways – with Simeon’s and DiBella’s, for example, they used a polyurethane spray foam.

In this case, it looks like there’s a bright blue-colored vapor barrier being applied over the sheathing, probably Carisle Coating and Waterproofing (CCW) 705 or similar. CCW-705 is a rubberized-asphalt adhesive laminated with a smooth, durable plastic film. Construction crews spray an adhesive (CAV-GRIP) onto the sheathing, and then roll out the air/water barrier sheets over the top, kinda like wallpaper. These unfurled sheets are then pressed over with a seam roller to ensure it’s firmly and completely applied to the building surface.  The edges of the sheets are then filled in with a liquid mastic, which is a putty-like waterproof filler and sealant. Once the surface is completely sealed by the barrier, tie plates are fastened with washers and screws, and the brick veneer is laid over the top, typically with a 2″ spacing for drainage and ventilation. It appears the brick may be underway on the western wall of the building, as shown in the first image below. Meanwhile, the bottom floor looks like a different sheathing material, some variety of Dow Thermax panels (fiberglass embedded in polyiso) from the looks of it.

Based on building elevations and girder brackets, the JPW Erectors crane located at the southeast corner of the site will eventually be replaced with the last steel sections for the building. The steel decking is in, and there’s ductwork for the HVAC rough-ins. Curious to see if they’ll have the building closed up before the first snow flies.

LeChase is the general contractor, and it looks like they have some union crews doing work on site – the Carpenters’ Union Local 277 and the IBEW (International Brotherhood of Electrical Workers) Local 241 have signage up, as do project team members JPW Erectors, Elwyn & Palmer (structural engineering), TWMLA Landscape Architects, and HOLT Architects.







209-215 Dryden Road Construction Update, 8/2017

19 08 2017

The Breazzano Center is occupied, so for practical purposes this project is complete. The interior and exterior finish work is wrapping up (interior moldings, some cosmetic exterior panels), and it looks like the new street seating, curbing and bike racks are in – the development team may hold off on plantings until next spring, depending on how well the project team thinks the new landscaping will grow in to its new environment, and by extension, its ability to withstand the winter months.

The interior is relatively dramatic for an office and academic building. There’s lots of natural light thanks to the glass curtain wall, the natural wood paneling gives it a warmer look, and the lighting underneath the staircases in the multistory atrium is a nice touch. If I have any interior critique, it’s that there’s so much transparent glass and bright light, it can feel a little disorienting, creating a feeling of space that makes the 76,000 SF building seem much larger than it is. Some of the breakout rooms and one of the tiered large-group classrooms are also included in the photos below.

The exterior is a big change of pace from the CMU-faced residential buildings (much of it from Jagat Sharma’s hand) that define much of Collegetown. The glass curtain wall is unique, for the time being. Personally, I’m not a big fan of the aluminum panels on the sides and rear, though I recognize the cost utility provided, and necessary protection of certain interior spaces like the broadcast studio on the fourth floor.

Speaking to some construction workers on-site (the same ones who kindly gestured me to go in and take a look), they were uncertain when construction would start on Novarr’s complementary 24-unit apartment building at 238 Linden Avenue next door. But a timeline from April suggests next month, with completion next summer. That sounds reasonable – finish with one building, transition immediately to the next. Work on Novarr’s 119-125 College Avenue townhouse project has yet to start either; it appears to be a makeshift parking lot for construction crews and company trucks.

Overall, it seems the recent work in this part of Collegetown and Ithaca is a net positive. With projects like the Breazzano, 238 Linden and Dryden South, within just a few years, a corner of Ithaca that once housed a few student-oriented businesses and mostly-rundown/vacant apartments will have been replaced with dozens of beds, office space for hundreds of Cornell staff, and classrooms for deep-pocketed students who visit for only a few weeks a year. Plus, it adds up to an additional $15 million or so in taxable property (and that’s accounting for the reduction as a result of the Tompkins County IDA PILOT agreement).  There’s a clear financial benefit to Collegetown business owners and to the city. Add an aesthetic bonus point for removing the power poles and shifting moving the electrical utilities underground.

The $15.9 million project will be 100% occupied by Cornell on a 50-year lease. Hayner Hoyt Corporation of Syracuse is the general contractor.

Before:

After:



The wording on these sheets conjures images of a stuffy, tense maître d’ addressing his staff.





602 West State Street Construction Update, 7/2017

19 07 2017

The new Elmira Savings Bank is open in Ithaca’s West End, and this project is done. A former restaurant is now 5,000 SF of renovated space plus 1,600 SF in a contemporary addition. Design-wise, it’s a smart re-use of a century-old structure, modernizing it but maintaining the integrity the original structure. Kudos to HOLT Architects for a successful blend of old and new. Elmira’s Edger Enterprises brought the $1.7 million project from the drawing board and into reality.

There’s no doubt that the project is further proof in the increased vitality and attraction of Ithaca’s long-forsaken West End, and another step on the the path to turning it into a stronger neighborhood. Within just a block, one has the new Planned Parenthood (2014), the 17-unit Iacovelli Apartments (2013), the renovated HOLT Architects office (2016), a gas station renovated into the Jade Garden restaurant (2015), and the new microbrewery opening up in the rear of the Cornell Laundry warehouse.

If there is one thing I wish had gone different with this project, it was the sale of the property and removal of three low-income families. That got ugly, and it tarnished what was otherwise a decent project. The story I’ve been told in the two years since is that the bank were mislead by the previous owner, who gave them old rental paperwork saying tenants were month-to-month, and ESB mistakenly assumed it was still accurate. So there’s something to be said about due diligence and taking a couple hours out to meet with tenants before any notices go out.

The northern end of the property has preserved a few mature trees, and in the long-run ESB would like to partner with a developer, affordable or otherwise, to do something along West Seneca. Plus, there are organizations like Lakeview, who coincidentally looked at doing a development where ESB is nowand are moving forward with affordable housing in the West End. More opportunities for mixed-use plans with market-rate and affordable housing will open up as properties go on the market and Ithaca’s economy continues to develop – and plans like Cayuga Med’s are big if auspicious question marks.

While it’s great to have new housing plans brought forward, it’s also important to maintain existing affordable housing (and programs to assist) while adding those new options. With Lakeside and Parkside scooped up and pushed upmarket, and Maple Hill now market-rate Ithaca East, that takes hundreds of units out of the equation, and this is a significant concern. It’s no surprise that tensions boiled over given the difficulties in preserving existing LMI housing options, and in approving and building new ones.

Anyway, enough with the final thoughts. Enjoy the photos.

Before:

After:





Tompkins Financial Corporation HQ Construction Update, 6/2017

20 06 2017

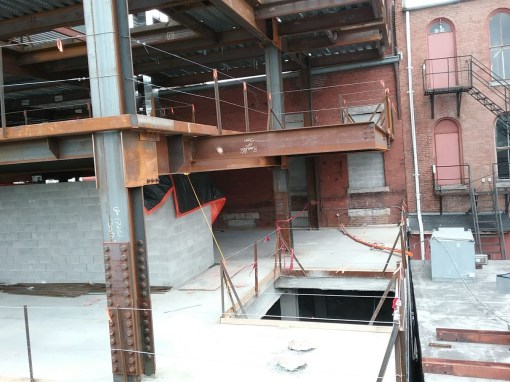

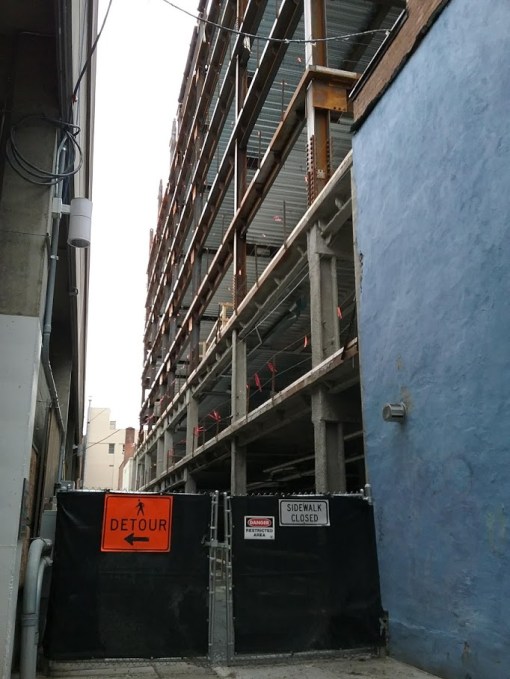

Over to the Tompkins Financial HQ. The rear face is a bit strange-looking at first glance because there’s a set of steel beams projecting right next to the first layers of gypsum sheathing, so it’s not clear where the back of the building is. A look at the plans indicates that the rear steel extension outlines a future stairwell, which projects a little further back from the main body of the building. The eastern segment of the skeleton has yet to be built past the elevator core, and consequently the rest of the rear/north wall projection has yet to be erected. As the rest of the structural steel is bolted into place, that will be boxed up, decked and sheathed.

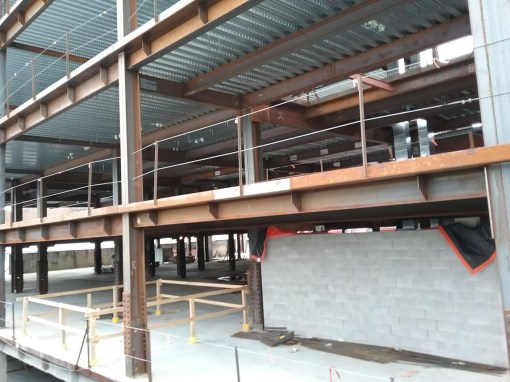

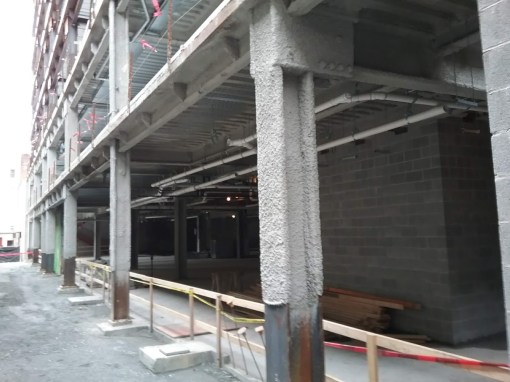

The lower floors have been sprayed with an undercoat of fireproofing, and are starting interior build-out with steel stud walls and concrete masonry units (cinder blocks). Under the safety cover, the fire-proof gypsum panels extend the full height of the building, with rough openings for future windows. Note that the top floor is set back a little bit from the lower floors, which can seen a little better in April’s update; this will be faced with a black brick veneer, while the projecting wall of the lower floors will be faced with a lighter stone. This feature was designed to make the building’s bulk a bit more subtle, and to respect the size and fenestration (window arrangement) of the DeWitt Mall next door.

Still a ways out from its March 2018 delivery date, but it looks like LeChase has things on track.





News Tidbits 6/5/17: The Return, Part III

5 06 2017

1. The Ithaca Gun site is almost in the clear, according to the NYS Department of Environmental Conservation (DEC). The state is proposing a “no further action” status for remediation of the Lake Street site along Fall Creek gorge, where the factory maintained a presence from 1885 to 1986. Testing the guns with lead bullets for decades had the unfortunate result of contaminating the gorge with toxic levels of lead and heavy metals, and the area has been under remediation in some form for almost 20 years. The first round of cleanup for the Superfund was from 2002-2004, but insufficient cleaning resulted in a second round of cleaning in 2014. A third round to excavate more contaminated soil along the steep slopes of the gorge was undertaken by the federal EPA over the past couple of years.

To quote: “Based on the results of the investigations at the site, the interim remedial measures and post-IRM screening that have been performed, the NYSDEC is proposing No Further Action as the remedy for the site…Periodic site inspections and reporting, which include additional removals of lead shot as needed, will ensure continued protection for the environment and public health.”

Note that this only impacts the part of the site that was donated to the city as parkland. A separate remediation plan has been crafted by Travis Hyde Properties as part of their plans to build 45 units of housing on the former factory site, the “Ithaca Falls Residences“. The completion of work on the city land would allow THP to put the finishing touches on their plan, and potentially move forward with their long-incubating housing proposal.

2. There was one detail that was initially missed when going over the failed candidacy of Lisa Bonniwell to the village of Lansing Board of Trustees. While her family’s housing development, the “Heights of Lansing”, has been in perpetual stall with only about 22 of the 80 units built since approval in 2005 (and the last townhouses in 2011-12, shown above), they do plan to start work on another “six-plex” string of luxury townhouses this year – Bonniwell cast blame on the gas moratorium for the holdup. Gives them something else to focus on after their lawsuit over the Park Grove Apartments re-zoning down the road, in which the courts decided in the village’s favor.

The existing units are 3 bedrooms, 2,297-2,400 SF and sell for about $350,000-375,000. Expect the next batch to be fairly similar, though with different exterior details – each string’s exterior finishes are unique.

3. Sticking with Lansing, the Cayuga Farms townhouses are planning some modest changes – the buildings will be smaller, which will allow 20% green space and the construction of a community clubhouse. There will still be 102 units with 3 bedrooms each, 1500-1800 SF, in the upper-middle (“premium”) market segment. The plan has been held up for years while trying to find appropriate ways to address wastewater/sewage, initially floating a pricey Orenco modular site-specific plan. However, with the likelihood of a sewer main being routed up North Triphammer Road in the near-future, that would render the sewage treatment issue a moot point and allow the already-approved project to move forward with permit requests.

4. Nothing too exciting with the local planning boards at the moment. The town of Ithaca is reviewing adjustments to the Westview subdivision that would allow homebuilder to have building permits open for more than two houses at any given time, and to allow him to build houses from different project phases (locations) so long as they have road frontage, sewer and water. Apparently the 2004 stipulations have created a headache with his newest home lots.

Meanwhile in Ulysses, the town planning board will be reviewing plans for additions to the Taughannock Inn at 2030 Gorge Road. The rather whimsical structure designed by architect Jason Demarest would add a “gatehouse/stable”, with five guest rooms, a check-in area, a bar and dining space, ice cream parlor, tent space, reflecting pools and whatever else that makes it sort of romantic events center for weddings, banquets and reunions. The 1870s inn will receive a new cupola, and the projects needs several zoning variance and a noise law revisions so that they can create to 90 dB until 1:30 AM.

5. Lansing’s 1020 Craft Road was picked up by an LLC tied to a construction company out of Endicott for $615,000 back in April, so that was was a strong indicator that something was planned. That plan looks like a gut renovation and 4,410 SF in additions, as well as a paved and landscaped parking lot. Pyramid Brokerage is already advertising professional office space in the 10,500 SF building, which was built around 1980 and used for manufacturing (sheet metal fabrication), and it was looking pretty run down by the time it was purchased. The lease is for $18.00/SF, with a minimum available space of 5,250 SF, which would be a pretty good sized office. Depending on the finishes though, it might have appeal for those looking for a suburban location with easy parking – CFCU’s headquarters is next door, and several other firms are housed in neighboring buildings.

6. The county released its report of potential tax foreclosures. The long story short is that if property taxes aren’t paid, the county may seize a property (courtesy says they give a couple warning first), which may then be sold by the county at auction to pay off the back taxes, or it may be given to a municipality if the community wants it, or it may be withheld completely if it is deemed to have special ecologic value (biodiversity, wetland, “Unique Natural Areas”, etc.)

There doesn’t appear to be anything too exciting in this year’s batch. The city almost got some prime waterfront real estate at a bargain price last year, but the owner was able to pay the tax bill before the city could claim it. This year, we see several rural properties that the county would like to put deed restrictions on for stream buffers and conservation options, a pair of industrial properties in Caroline and Dryden, and a handful of single-family homes around the area. Nothing that looks especially tempting to the ambitious, although there are a handful of individuals who scoop these properties up at auction and then market them at a much higher price (with some success).





602 West State Street Construction Update, 5/2017

30 05 2017

Starting to get a good idea of what the final product will look like at the future Elmira Savings Bank location at 602 West State Street. The structural steel for the drive-thru canopy is up, the new front and rear entrance canopies are being erected, and the new curbing is down. The new north addition has its steel and masonry with matching belt course, but it looks like the new interior stairs have yet to be built (the floor plan of the new addition is basically a stairwell albeit an imposing one, an elevator lobby and the elevator). the two-story opening facing Meadow Street will be framed with metal panels and fitted out with a contemporary glass curtain wall.

The early renders suggested a beige color for the aluminum panels, but according to the final materials submission, the panels will be Alucobond “Anodic Satin Mica”, which most folks would describe as a soft tan/dull tan. The alumnium roof coping, flashing and gutters/downspouts will be Hickman Sandstone, and the stucco will be painted Benjamin Moore Horizon Greyboth are close approximations of the building’s historic paint colors.

Taking a guess, the arched windows have to be custom-made, and given the time that takes, it might explain why they’re the last replacement windows to be inserted. The windows will be fitted with metal sunshades towards the end of the construction period.

Construction on the $1.7 million renovation/addition (5,000SF/1,600 SF, total 6,600 SF) is due to wrap up in August. Elmira Savings Bank will occupy 3,300 SF on the first floor. The second floor, also about 3300 SF, will host for-rent office space (a little too big for the Voice though, which I’d wager at 800 SF off the cuff). HOLT Architects is in charge of design, and Elmira’s Edger Enterprises is in charge of the buildout. It looks like glazing has been subcontracted to Frontier Glass Inc. of Rochester.





Tompkins Financial Corporation HQ Construction Update, 4/2017

25 04 2017

I could see the clouds to the north and west, I knew the rain was coming. I even glanced at a radar still on my phone and assumed that, as most fronts tend to do, it was moving west to east in a diagonal SW-NE band – by that logic, I had about fifteen minutes to take photos, run to my car and get my umbrella. As it turns out, the front was pushing north to south. So I did not have fifteen minutes. I had five. Oops.

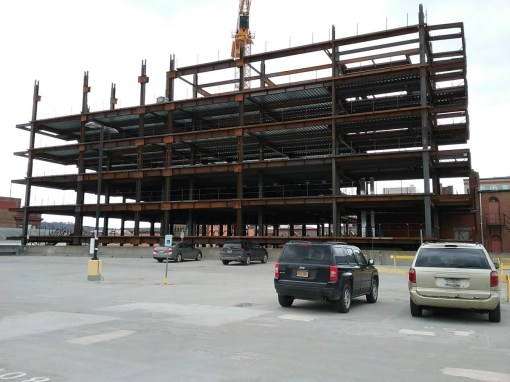

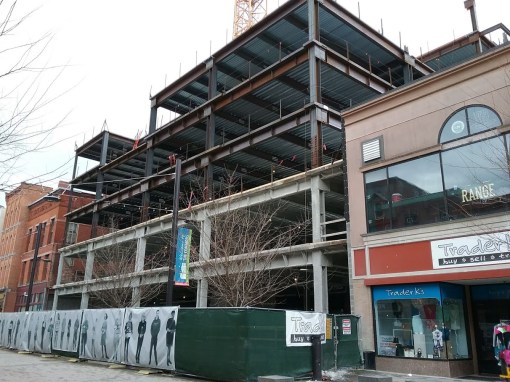

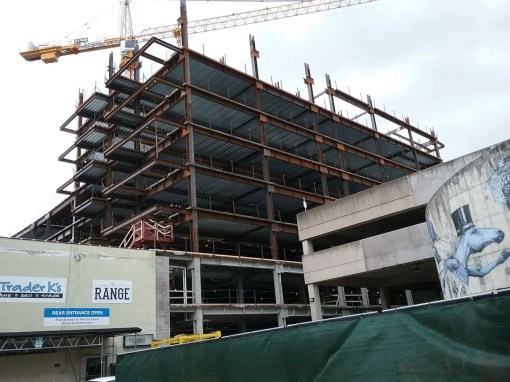

Anyway, TFC’s new HQ is topped out and decked with corrugated steel (a bit sooner than anticipated), though it’s not built out – the rear (north) flank and the east flank are missing. Those are the portions that will be built over the surface parking. You can make out a couple of the support piles in the pics below, and those will tie into the structural columns in the garage area, and into the structural steel of the upper levels. As noted with 201 College, it’s a bit unexpected that the structure would top out before even a single floor is built out, but it is what it is. The building’s height is there, but in terms of breadth, it’s less than half of the final product. The elevator core is at full height, and the steel stud wall and gypsum sheathing on the back separate the future ground-floor bank branch from the rear parking, which will be reserved for customers and clients. Pipe scaffolding has been erected as workers begin work on the interior (sprinkler system, utilities rough-ins).

Occupancy is intended by March 2018. JPW Erectors, a division of the JPW Companies of Syracuse, is in charge of the framing, while LeChase Construction is the general contractor. HOLT Architects penned the 110,000 SF building’s design.
